Inner Tube Yoke, #2 B&P

Inner Tube Yoke, #2 B&P

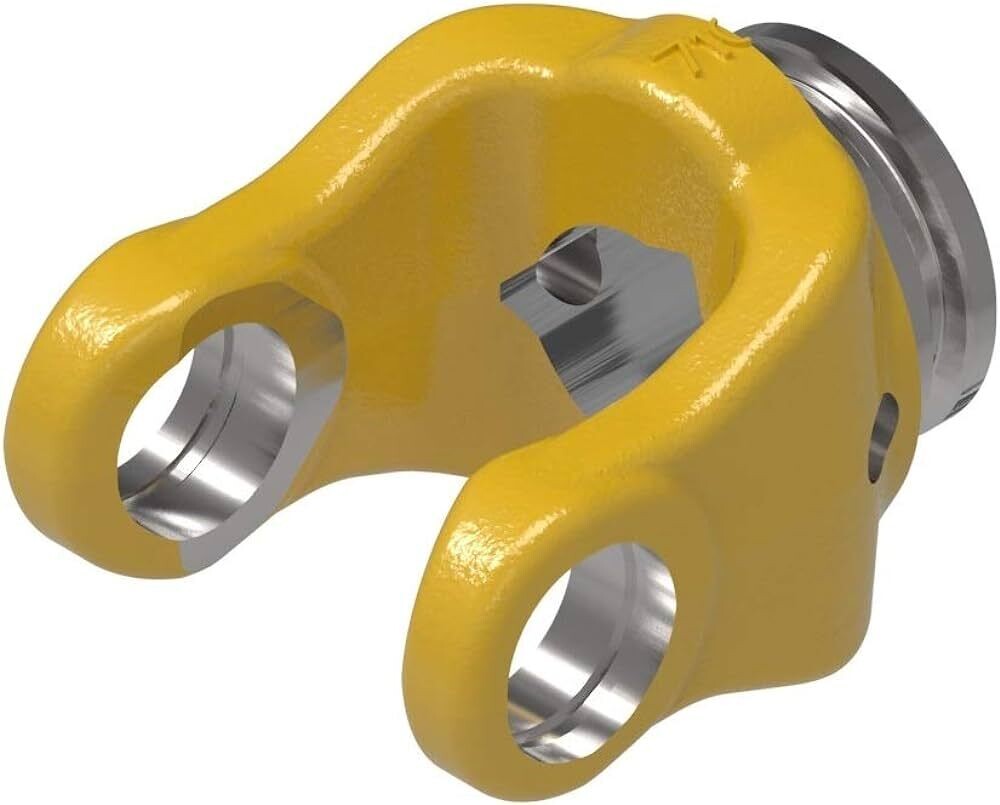

The 300-6229 Inner Tube Yoke, #2 B&P is a Weasler inner profile (shaft) yoke used to connect a cross and bearing kit to the telescoping shaft (inner tube) in PTO driveline assemblies. Designed for Weasler Profile metric applications, this yoke uses a 29 mm trilobe bore and roll pin connection, supporting dependable driveline engagement for agricultural and equipment power transmission setups.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-6229
• Brand: Weasler
• Product Type: Inner tube yoke / shaft yoke (inner profile yoke)
• Series / Profile: #2 B&P / Weasler Profile metric
• Bore / Profile: 1.14 in (29 mm) — 29 mm TRILOBE
• Connection Type: Roll pin
• Outside Diameter: 1.85 in (47 mm)
• Overall Length: 2.95 in (75 mm)
• Height: 3.35 in (85 mm)
• Width: 2.00 in (51 mm)
• Pin Hole Diameter: 0.31 in (8 mm)
• Power Rating @ 540 RPM: 25 HP (19 kW)
• Power Rating @ 1000 RPM: 38 HP (28 kW)
• Weight: 1.46 lb (1 kg)
• Shipping Dimensions: 3.66" L × 3.35" H × 2.00" W (9 cm L × 9 cm H × 5 cm W)
• Shipping Volume: 24.52 in³ (402 cm³)
• Shipping Weight: 1.46 lb (1 kg)

Ideal For

• Replacing a worn or damaged inner tube (shaft) yoke on PTO drivelines
• Applications using Weasler Profile metric #2 B&P with a 29 mm trilobe inner profile
• Driveline assemblies requiring a roll-pin secured yoke connection
• Equipment needing dependable PTO power transfer up to 25 HP @ 540 RPM or 38 HP @ 1000 RPM
• Service shops stocking common PTO shaft yoke repair components
